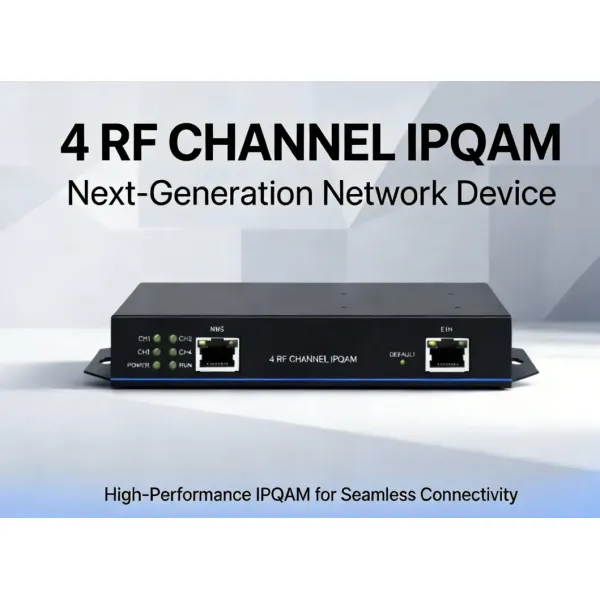

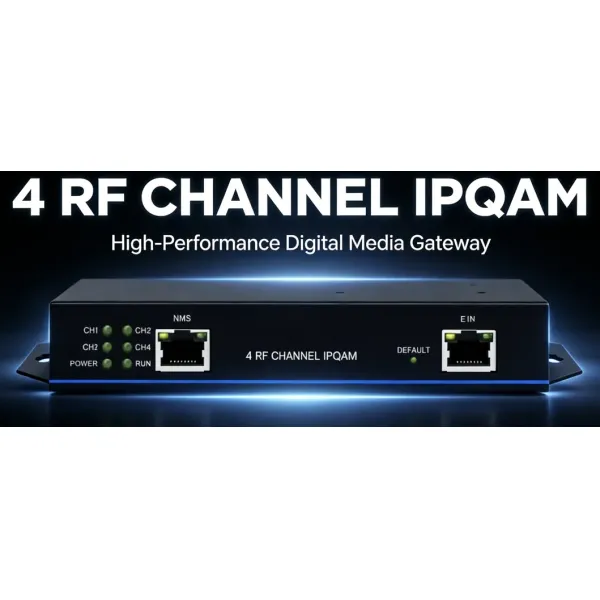

Four Frequency Points RF Modulator Loop Output For Reliable Signal Control

MOQ : 10-100

Price : Negotiable

Place of Origin : China

Brand Name : OEM

Certification : CE FCC

Packaging Details : Carton

Delivery Time : 7-15days

Supply Ability : 10,000 pieces per month

Payment Terms : Western Union,T/T,D/P

Model NO. : BTH2106

RF Out : DVB-T

Encoding : MPEG-4

Modulation Method : DVB-T Cofdm

Contact Now

Four-Frequency Points RF Modulator with Loop Output for Reliable Signal Control
Overview

BTH2106 is a four-frequency output IP modulator designed for engineering and residential applications. This product supports multiplexing and modulating one channel of IP signal input into one channel of RF output with 4 frequency points, supports multi-standard digital formats, and the RF signal output can be connected to coaxial TV systems. The unit features an RF loop input port for mixing multiple BTH2106 outputs or combining outputs with antenna signals.

Key Features
  • Support 1 channel IP signal input
  • Support TS stream re-multiplexing function
  • Support 1 channel RF output with 4 frequency points
  • Support 1 channel of external RF signal loop-in and internal modulation signal mixed into one channel of RF output
  • Support multi-standard modulation
  • Agile frequency conversion design - RF output frequency can be arbitrarily set within the frequency range
  • Support operation interface: WEB network management software
Scope of Application
  • Cable digital TV front-end engineering
  • Home surveillance
  • Hotels
  • Hospitals
  • Entertainment venues
Performance Parameters
Physical Parameters
Parameter Specification
Size 176(W) * 123(D) * 36(H) mm
Operating Temperature, Humidity -10ºC to 45ºC, 40% to 70%
Storage Temperature, Humidity -40ºC to 70ºC, 40% to 95%
IP Input Parameters
Parameter Specification
Input Interface 1 Gigabit RJ45 Interface
Input Format Support unicast/multicast protocol, support UDP, IGMP V2/V3 single program stream (SPTS)
Modulation Parameters
Parameter Specification
Adjustment Standard DVB-T COFDM
Bandwidth 6/7/8 MHz
Modulation Constellation QAM64, QPSK, QAM16, QAM64
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K, 4K, 8K
MER ≥ 40 dB
RF Frequency Range 50-999.999 MHz (Min Step 1 KHz)
Output Impedance 75 Ohm
Output Level ≥ 100 dBuV (0-31.5 dB Modulation Range, 0.5 dB Step)
Out-of-band Rejection ≥ 60 dB
Power
Parameter Specification
Supply Voltage DC 12V
Max Current 2000 mA
Four Frequency Points RF Modulator Loop Output For Reliable Signal Control Four Frequency Points RF Modulator Loop Output For Reliable Signal Control Four Frequency Points RF Modulator Loop Output For Reliable Signal Control Four Frequency Points RF Modulator Loop Output For Reliable Signal Control
Purchasing Information
Name Type Remark
Four-frequency output multiplexing modulation integrated machine BTH2106 DVB-T/T2
Additional Features

The device includes built-in web management software for easy configuration and monitoring.

If you need more details, please contact us now. We look forward to hearing from you!
